Precision Roll-to-Roll Etching Service High-Speed Mass Production

Precision Roll-to-Roll Etching Service High-Speed Mass Production

Marka Adı:	XHS/Customize
Model Numarası:	Özelleştirmek
Moq:	10
Fiyat:	50-100USD
Ödeme Şartları:	T/T
Tedarik Yeteneği:	10000-100000pcd / hafta

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO 9001, ISO 14001, IATF 16949

Yüzey kaplaması:

Düz

İşlem türü:

Kimyasal dağlama

Dayanıklılık:

Yüksek

Malzeme:

paslanmaz çelik

Gravür:

Özelleştirilmiş

Tolerans:

± 0.01mm

Ambalaj bilgileri:

Pe çantalar ve karton

Yetenek temini:

10000-100000pcd / hafta

Vurgulamak:

high-speed roll-to-roll etching service

precision reel to reel etching

mass production roll-to-roll etching

Ürün Açıklaması

Precision Roll-to-Roll Etching Service High-Speed Mass Production

What is Roll-to-Roll Etching?
Roll-to-Roll etching is a continuous, high-speed manufacturing process where metal is etched from a roll of material, enabling efficient mass production of precision parts with consistent quality and reduced cost.

Roll-to-Roll Etching Overview
Xinhsen provides high-volume, precision roll-to-roll etching for flexible metal parts. Ideal for complex, fine-feature components produced efficiently in continuous rolls.

Roll-to-Roll Etching Key Feature

High precision: Micro-holes down to 0.03mm, line width up to 0.015mm
Wide material range: stainless steel, copper, brass, aluminum, nickel, etc.
Burr-free and stress-free: maintains material properties
Fast turnaround: from prototype to mass production
Consistent quality: etching uniformity within ±0.03mm

Roll-to-Roll Etching Specification

Item	Capability
Materials	Stainless steel, Cu, Brass, Al, Ni, etc.
Thickness	0.02mm – 3mm
Min. Hole Size	0.03mm
Tolerance	±0.01mm (standard)
Min. Line Width	0.015mm

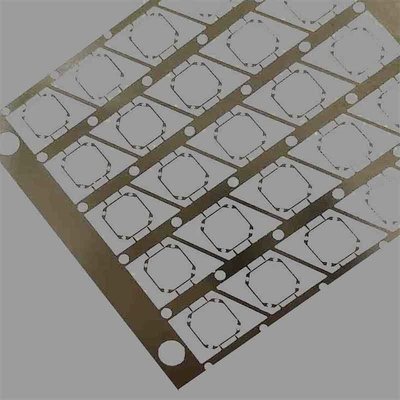

Precision Roll-to-Roll Etching Service High-Speed Mass Production 0

Roll-to-Roll Application

Electronics: speaker meshes, shielding covers, flexible circuits
Medical: sensors, filters, electrode components
Automotive: precision filters, EMI shields
Industrial: various fine filters and conductive parts

Our Advantages

Quick response to urgent/large orders
13+ years precision etching expertise
One-stop solution from design to delivery

Ready to Elevate Your Production?
Contact us today for a free design consultation and instant quote. Let's transform your ideas into high-precision reality – faster, smarter, and at scale.
